Brass Knock-in Inserts
Brass Knock-in Inserts

Brass Knock-in Inserts

Price 1000 INR/ Kilograms

MOQ : 15000 Kilograms

Brass Knock-in Inserts Specification

  • Thread Type
  • Metric, UNC, UNF
  • Finish
  • Bright
  • Corrosion Resistant
  • Yes
  • Grade
  • CW614N / IS 319
  • Capacity
  • Up to 5000 pcs/hour
  • Feature
  • Self-tapping, High grip, Easy installation
  • Load Capacity
  • Up to 250 kg
  • Standard
  • DIN 7965 / Custom
  • Drive Type
  • Push-fit, No drive
  • Shape
  • Cylindrical
  • Torque
  • Max 3 Nm
  • Thickness
  • 0.5 mm to 3 mm
  • Diameter
  • M3 to M12
  • Hardness
  • 80-100 HB
  • Tensile Strength
  • Ultimate up to 450 MPa
  • Surface Treatment
  • Other
  • Head Type
  • Knock-in
  • Fasteners Type
  • Insert
  • Material
  • Brass
  • Tolerance
  • ±0.02 mm
  • Application
  • Wood, Plastics, Soft Metals
  • Length
  • 6 mm to 25 mm
  • RoHS Compliance
  • Yes
  • MOQ
  • 1000 pieces
  • Operating Temperature
  • -10C to 120C
  • Knurling Type
  • Straight, Diamond
  • Custom Sizes
  • Available
  • Installation Method
  • Hammer in
  • Internal Thread Depth
  • 80% of total length
  • Packaging Type
  • Box, Carton


Brass Knock-in Inserts Trade Information

  • Minimum Order Quantity
  • 15000 Kilograms
  • Supply Ability
  • 200000 Kilograms Per Month
  • Delivery Time
  • 15 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Boxes
  • Main Domestic Market
  • All India


About Brass Knock-in Inserts

Brass Knock-in Inserts

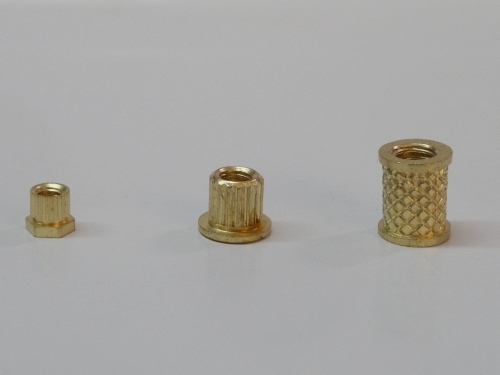

We are manufacturer and exporter of Brass Knock-in Inserts. We have wide range available in brass inserts. We can provide in Round Inserts, Hex Inserts, Square Inserts, Knurling Inserts, Threaded Inserts and as per customers requirement.

Material

Free Cutting Brass IS 319 Type (l)

Free Cutting Brass as per BS 249 Type(I)

Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass threaded inserts in form of round, Hexagon, Square etc

Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc

High Grade Free Cutting Brass.

Any Special Brass Material Composition as per customers requirement


Threads

ISO Metric (MM Threads)

BA Threads

BSW Threads (Inches)

UNC, UNF,UNEF and NPT Threads

BSP & BSPT (Parallel & Taper Threads)

Any threads as per specifications



Features

Thread as per international Go and Not Go Gauge Standard.

Deep Groove for maximum Pull out Resistance.

Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass inserts.



Application

Plastic Industry

Rubber Industry

Electronic Industry

Electrical Industry,etc...



Precision Fastening Solutions

Our Brass Knock-in Inserts deliver exceptional grip and tensile strength for diverse assembly tasks in wood, plastics, and soft metals. Self-tapping design ensures secure installation and long-lasting durability, making them essential for demanding environments.


Customizable for Varied Needs

Available in sizes from M3 to M12, with custom lengths and knurling types, these inserts cater to unique project requirements. Choose natural, nickel, or chrome plating finishes to meet specific aesthetic or corrosion resistance demands.


Reliable Performance and Compliance

Engineered to RoHS standards, these inserts withstand operating temperatures from -10C to 120C and offer ultimate tensile strength up to 450 MPa. Manufactured in India, our facilities deliver up to 5000 pieces per hour, ensuring consistent quality and timely supply.

FAQs of Brass Knock-in Inserts:


Q: How are Brass Knock-in Inserts installed in various materials?

A: Brass Knock-in Inserts are installed using a simple hammer-in process. This direct method allows the self-tapping insert to grip securely into wood, plastics, or soft metals without the need for pre-threading or special tools.

Q: What knurling options are available, and how do they enhance grip?

A: You can choose between straight and diamond knurling types. Both enhance the inserts grip and anti-rotation features within the host material, ensuring a secure and strong hold during and after installation.

Q: When should I select custom sizes or specifications for these inserts?

A: Custom sizes and specifications are recommended when your application requires non-standard thread types, diameters, or lengths. This flexibility ensures precise fit and optimal performance for specialized projects.

Q: Where can Brass Knock-in Inserts be used effectively?

A: These inserts are ideal for use in applications involving wood, plastics, and soft metals. Common industries include furniture manufacturing, electrical assemblies, and plastics fabrication where high grip and easy installation are critical.

Q: What process should be followed for bulk orders and packaging?

A: For bulk orders, a minimum order quantity of 1000 pieces applies. Inserts are securely packed in boxes or cartons to ensure safe transit and easy handling upon delivery.

Q: How does the feature of self-tapping benefit installation and performance?

A: The self-tapping feature allows the insert to cut its own thread during installation. This reduces time, ensures robust anchoring, and eliminates the need for pre-threading the base material, optimizing workflow efficiency.

Q: What are the advantages of choosing these inserts regarding strength and durability?

A: Brass Knock-in Inserts offer high load capacity (up to 250 kg) and excellent tensile strength (up to 450 MPa). Their corrosion-resistant brass construction and robust design guarantee reliability in both indoor and outdoor environments.
