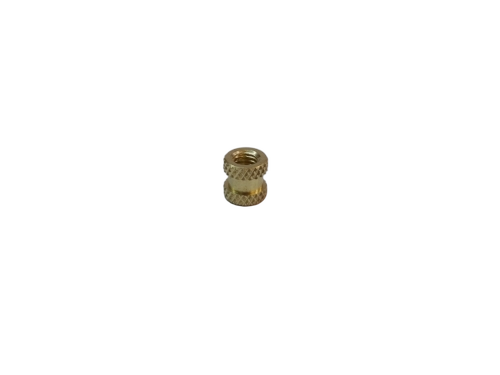

Brass Threaded Round Inserts

Name: Brass Threaded Round Inserts
Brand: MAHAVIR TECHNOCRATES
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Kilograms

Get a Price/Quote

MOQ : 15000 Kilograms

Brass Threaded Round Inserts Specification

Finish
Natural, Polished, Nickel Plated

Hardness
70 HRB

Surface Treatment
Other

Feature
Easy installation, High Durability, Rust-free

Tensile Strength
350 MPa (approx)

Head Type
Round

Corrosion Resistant
Yes

Standard
DIN, ISO, JIS

Thread Type
Internal Thread, Metric/UNC

Shape
Round

Torque
15 Nm

Drive Type
Slotted/Hex

Diameter
3 mm to 20 mm

Grade
CZ121 / IS 319

Thickness
2 mm to 15 mm

Capacity
High pull-out strength

Load Capacity
Up to 250 kg

Fasteners Type
Threaded Insert

Material
Brass

Tolerance
±0.05 mm

Application
Plastic, Wood, Thermoplastics, Electronics

Min Order Quantity
1000 Pieces

Temperature Resistance
Up to 250C

Length
5 mm to 50 mm

Packing Type
Carton Box/Poly Bag

Threads per Inch
As per specification

Installation Method
Press-Fit / Ultrasonic / Heat Fit

Flange Option
Available

Brass Threaded Round Inserts Trade Information

Minimum Order Quantity
15000 Kilograms

Supply Ability
200000 Kilograms Per Month

Delivery Time
15 Days

Brass Threaded Round Inserts About

Brass Threaded Round Inserts

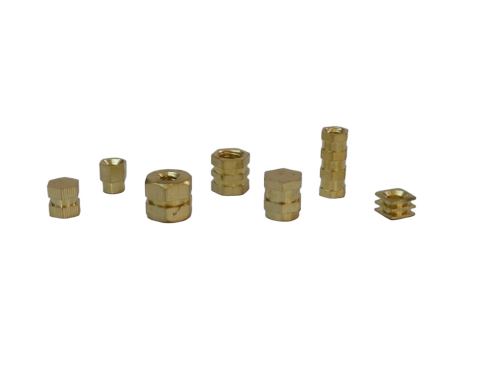

We are manufacturer and exporter of Brass Threaded Round Inserts. We have wide range available in brass inserts. We can provide in Round Inserts, Hex Inserts, Square Inserts, Knurling Inserts, Threaded Inserts and as per customers requirement.

Material

Free Cutting Brass IS 319 Type (l)

Free Cutting Brass as per BS 249 Type(I)

Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass threaded inserts in form of round, Hexagon, Square etc

Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc

High Grade Free Cutting Brass.

Any Special Brass Material Composition as per customers requirement

Threads

ISO Metric (MM Threads)

BA Threads

BSW Threads (Inches)

UNC, UNF,UNEF and NPT Threads

BSP & BSPT (Parallel & Taper Threads)

Any threads as per specifications

Features

Thread as per international Go and Not Go Gauge Standard.

Deep Groove for maximum Pull out Resistance.

Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass inserts.

Application

Plastic Industry

Rubber Industry

Electronic Industry

Electrical Industry,etc...

Versatile Solutions for Enhanced Fastening

Our Brass Threaded Round Inserts are meticulously crafted to provide secure, durable fastening solutions in a range of substrates, including plastic, wood, and thermoplastics. Suitable for electronics and general engineering applications, they ensure robust, long-lasting connections with high load and pull-out capacities.

Superior Material and Finishes

Manufactured from premium-grade CZ121/IS 319 brass, these inserts offer outstanding strength and rust-free performance. Their surface finishesnatural, polished, or nickel platednot only enhance aesthetic appeal but also contribute to the products corrosion resistance and durability.

Flexible Installation and Customization

Installation is easy with press-fit, ultrasonic, or heat-fit methods, accommodating various assembly requirements. Options like internal threads in Metric or UNC, flange availability, and compatibility with standards such as DIN, ISO, and JIS, make these inserts customizable for specific tasks and performance parameters.

FAQs of Brass Threaded Round Inserts:

Q: How are Brass Threaded Round Inserts installed in different materials?

A: These inserts can be fitted using press-fit, ultrasonic, or heat-fit techniques. Each method accommodates specific material typesheat or ultrasonic fit is ideal for plastics, while press-fit is suitable for wood or thermoplastics. Correct method selection ensures optimal grip and longevity.

Q: What sizes and thread types are available for these inserts?

A: The inserts come in diameters from 3 mm to 20 mm and lengths between 5 mm and 50 mm. Thread types include internal Metric or UNC threads, and threads per inch can be supplied as per specific application requirements.

Q: When is a flange option recommended for these inserts?

A: The flange option should be considered when additional hold or improved distribution of load is needed, especially in materials that may be prone to cracking or splitting. Flanged inserts also prevent unwanted pull-through or movement under load.

Q: Where can Brass Threaded Round Inserts be used effectively?

A: These inserts are versatile and find effective use in plastic and wood assemblies, thermoplastic products, electronic casings, and general engineering applications requiring durable and removable threads.

Q: What are the key benefits of using Brass Threaded Round Inserts over other fasteners?

A: Brass inserts offer high durability, exceptional corrosion and temperature resistance (up to 250C), and strong pull-out and load-bearing capacities. They also deliver easy installation and accurate fit with a 0.05 mm tolerance, providing reliability across different applications.

Q: What is the typical packaging and minimum order quantity for these inserts?

A: Brass Threaded Round Inserts are typically packed in sturdy carton boxes or poly bags to ensure product integrity during shipment. The minimum order quantity is 1,000 pieces, suitable for both bulk requirements and ongoing manufacturing needs.
